S-Cap E10
Downloads

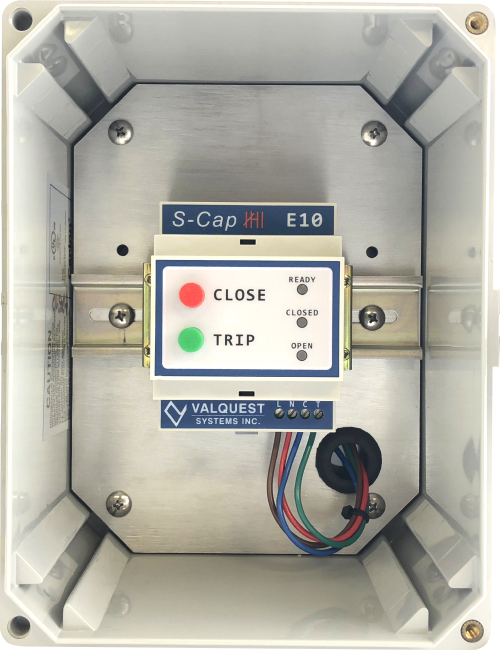

The S-Cap E10 is specifically designed for manual operation of utility distribution feeder capacitors. This low cost control offers safety features such as back off time delay for Close operations and a capacitor discharge inhibit based on IEEE standards. The S-Cap E10 enclosure allows for easy deployment using either a meter base, DIN connector, or directly to the control terminals.
Technical Specifications
| Parameter | Range | Units |
|---|---|---|
| Enclosure | NEMA 4X | Polycarbonate |
| Operating Temperature | -40 to 85 | Degrees C |
| Operating Relative Humidity | 5% to 95% | Percent (non-condensing) |
| Storage Temperature | -40 to 85 | Degrees C |
| Control Weight | 4 | Pounds |
| Operating Voltage (120) | 90 to 140 | VAC |
| Operating Voltage (240) | 210 to 260 | VAC |
| Operating Frequency | 50 / 60 | Hertz |
